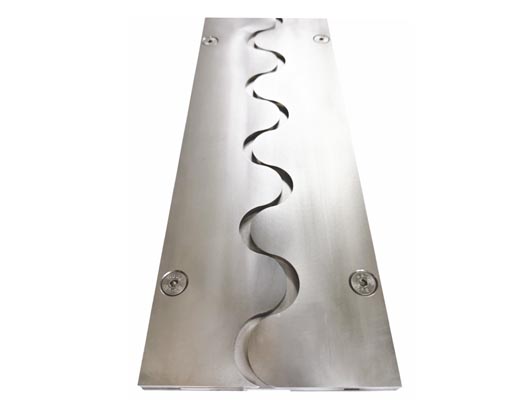

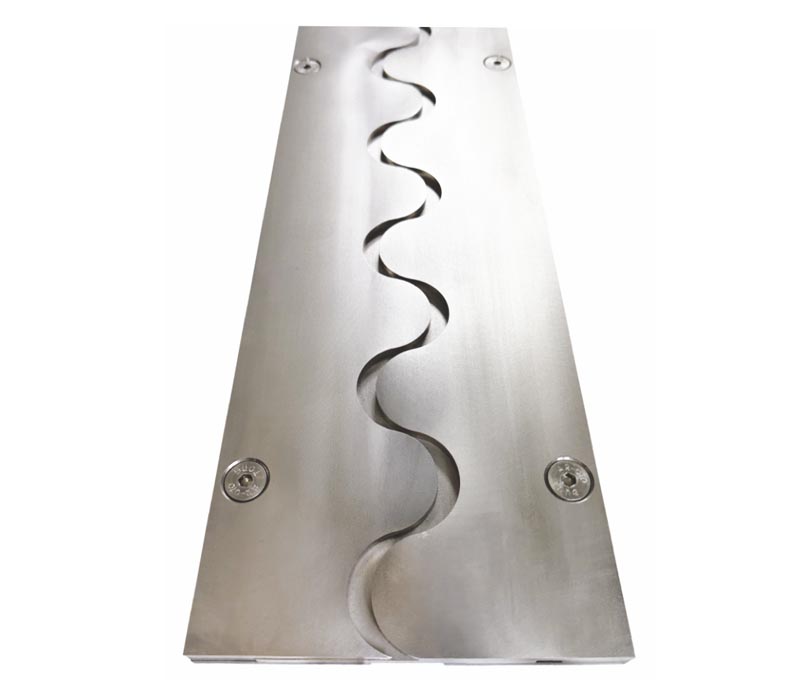

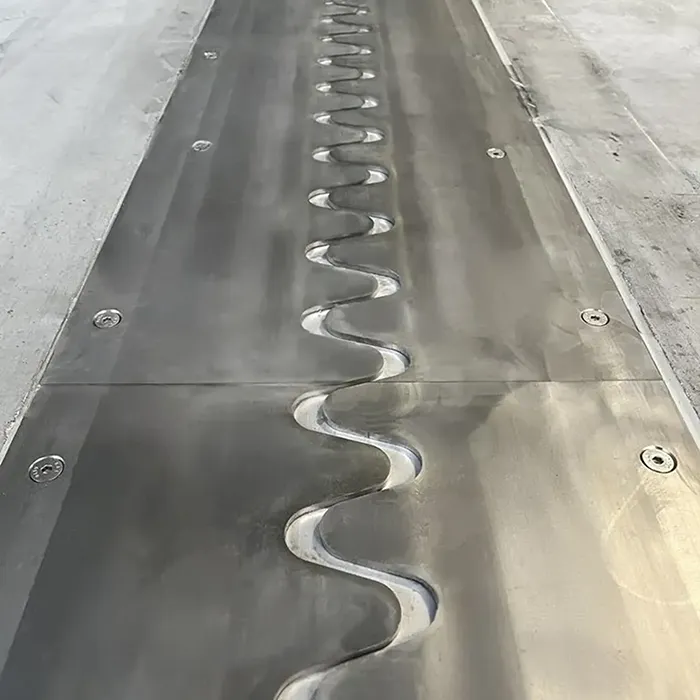

Sinus 06nc110-r

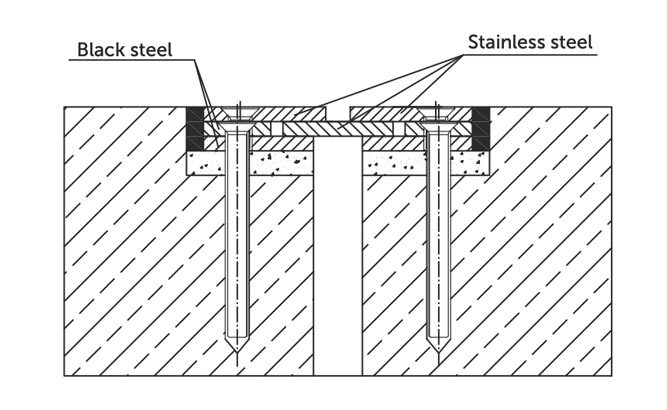

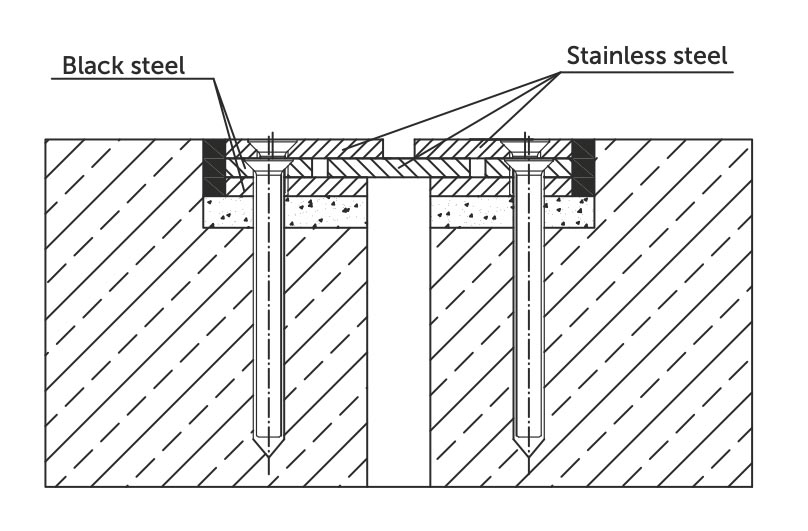

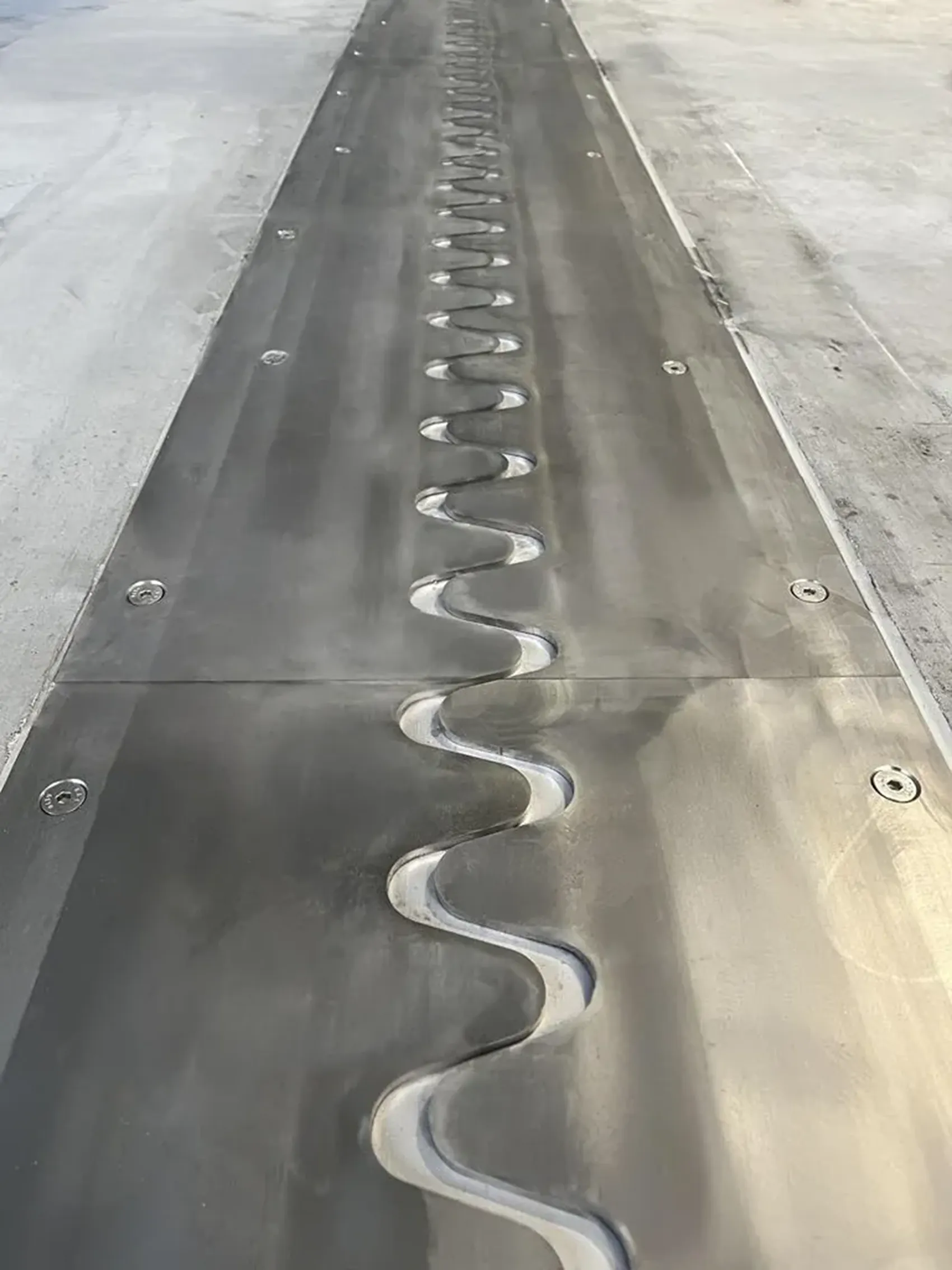

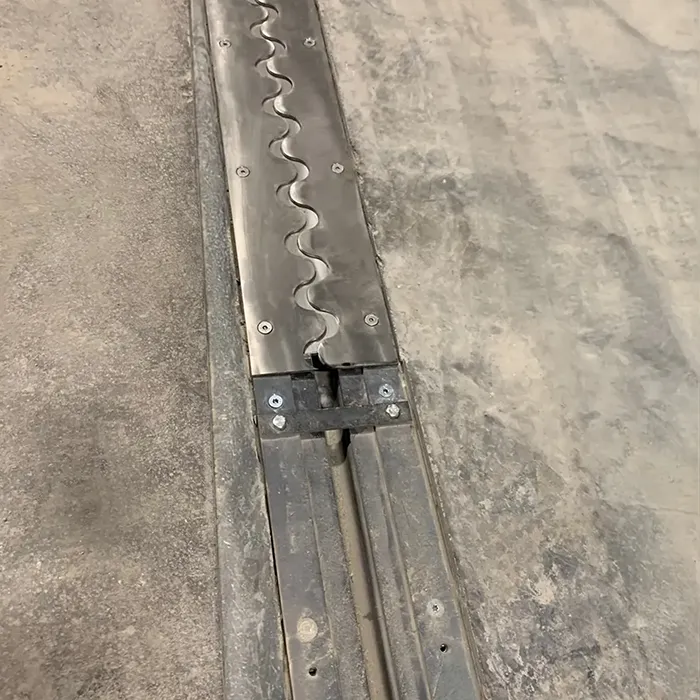

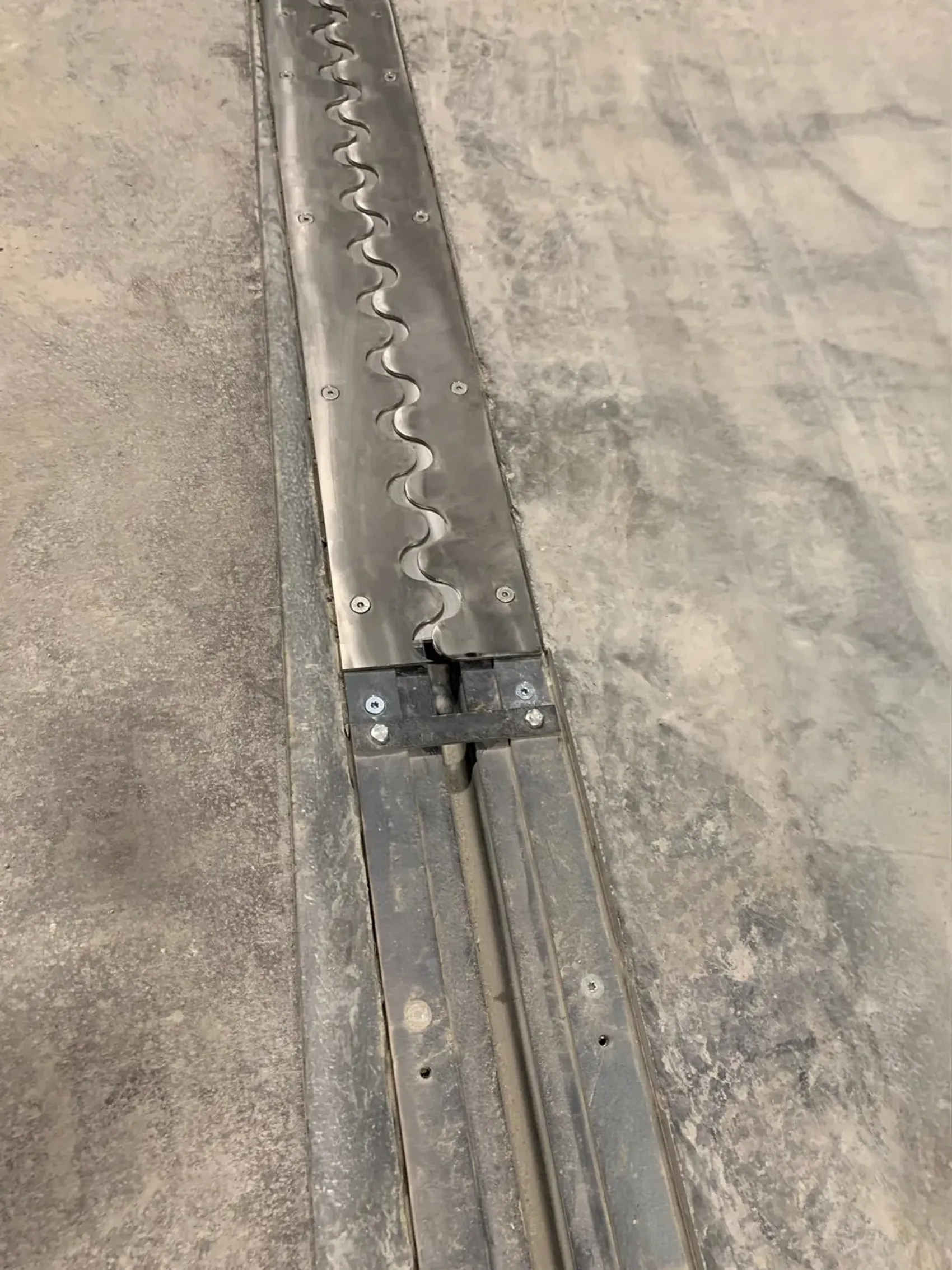

Flat steel joint with sinusoid dilatation gap designed for heavy loads, used for cracked concrete floors repair. Installed to existing concrete floor with montage flat bars that are removed after hardening of mortar. Bilateral protection of concrete plate edges. There is possibility to order the profile made of stainless steel or black steel. Standard length l = 3000mm.

We have a possibility to make a profile in different widths between 110mm-300mm.

Technical data sheet

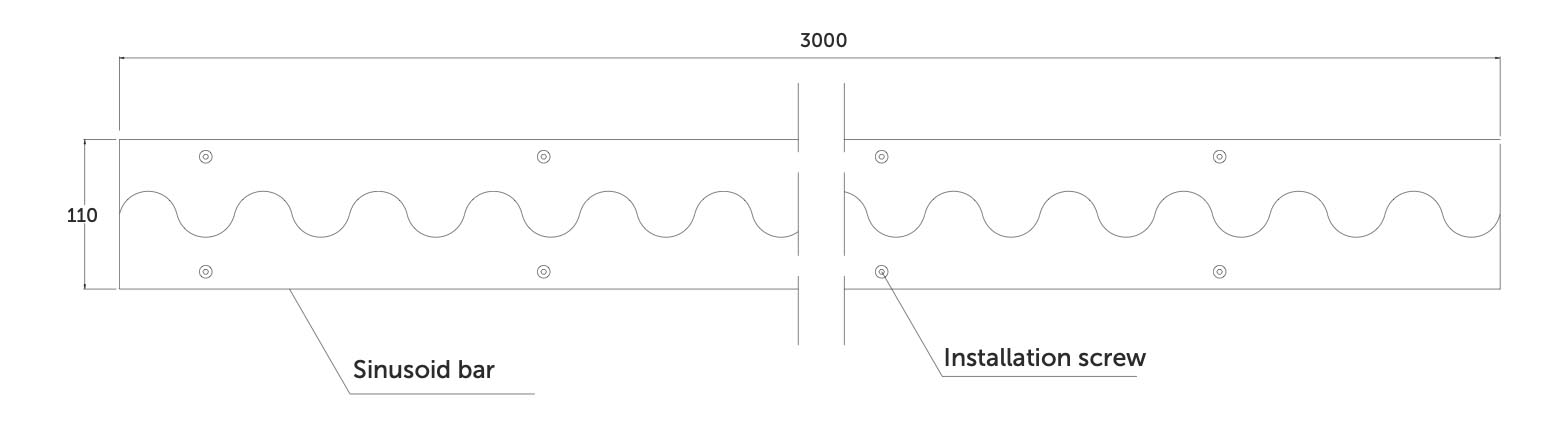

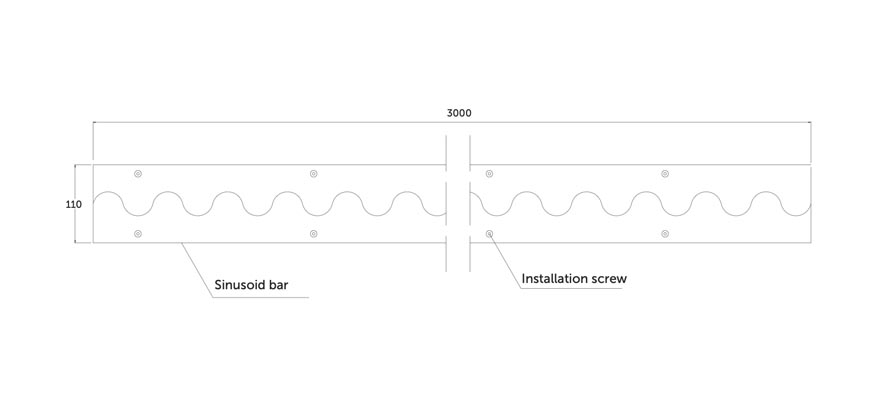

Technical drawings
